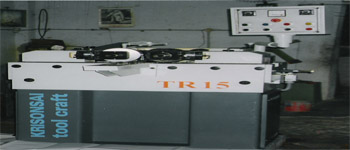

Thread Rolling Machines(TR-15 STANDARD)
TECHNICAL SPECIFICATIONS
- Main Motor(Gear Box)(LHP or ABB)-7.5 HP
- Hydraulic Motor(LHP or ABB)-2HP
- Coolant Motor(Rajamani Make)-0.25 HP
Total Installed Power:
- Main Motor+Hydraulics+Coolant
- Max.width of Rolls-128mm
- Max.Diameter of Rolls-170mm
- Max.Diameter of Work-50mm
- Min Diameter of Work-3mm
- Max Pitch-4mm
- Roll Shaft Dia-54
- Keyway-12mm*4.5
- Speed Variation By Change Gears16 to 85RPM-8Speeds
Maximum Threaded Length:
- Obtainable w/infeed Rolling-128mm
- Max Rolling trust
- Title Roll Shafts For Though Feeeding
- All Main Hydraulic Elements are of "YUKEN "make
- Motors Are LHP make or ABB
STANDARD ACCESSORIES
- Spacers 5,10,20,30&40 widths In Set of2No's Each
- Work Rest Holder
- End Stoppers Spring Loaded
- Allen Key Set
- D.E Spanners required for the machine numbers
